Carbide XXX gradu spiralis virga
Inquisitio
Product Introduction

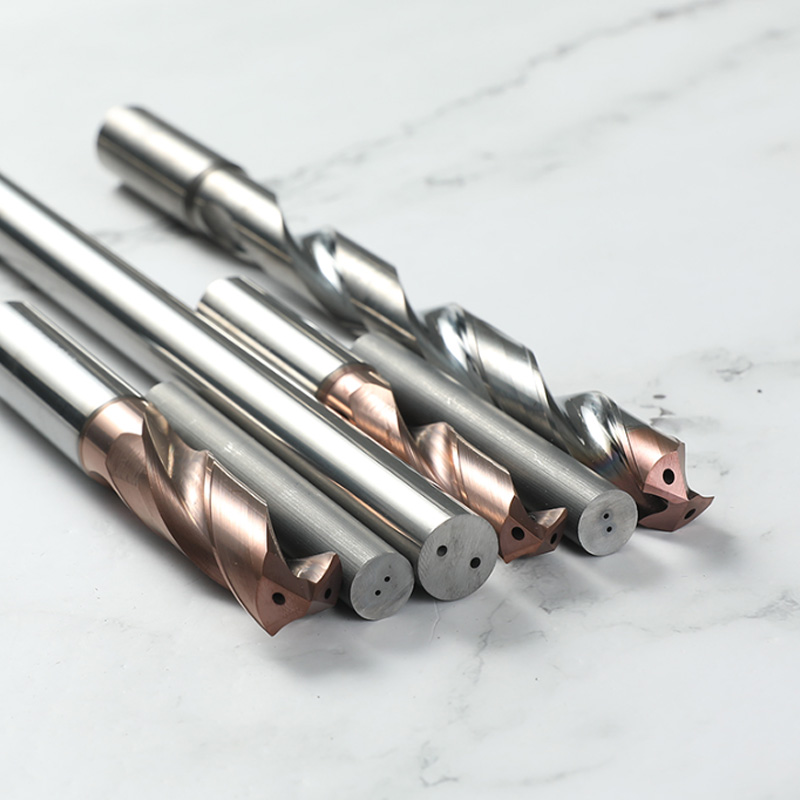

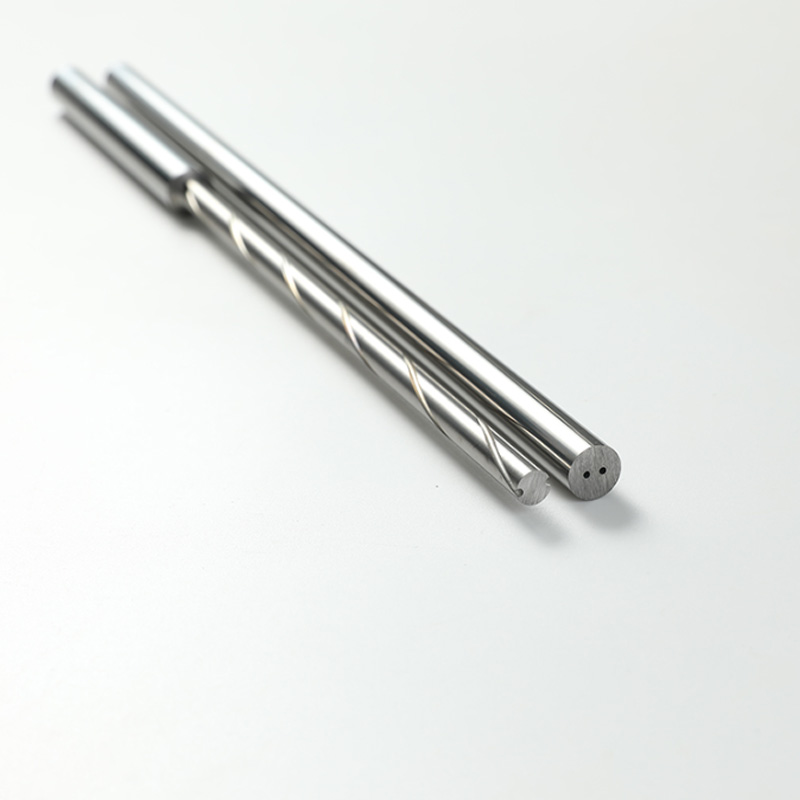

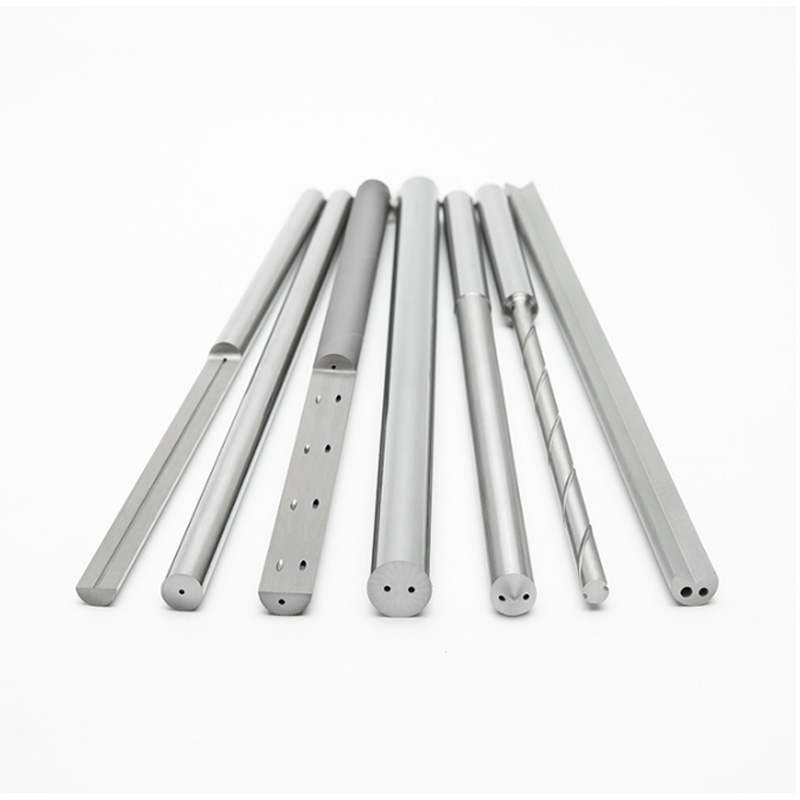

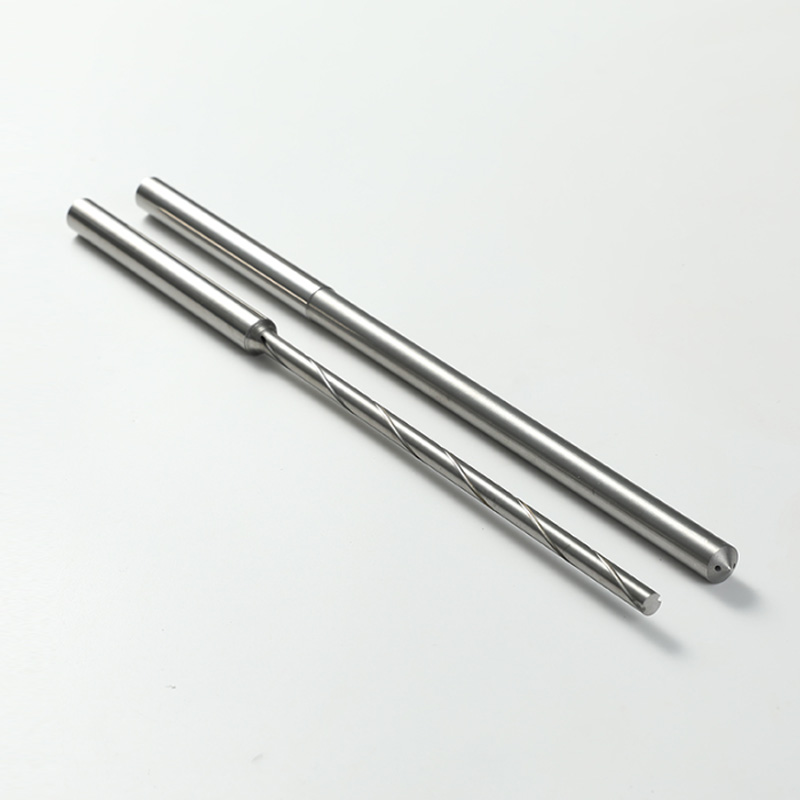

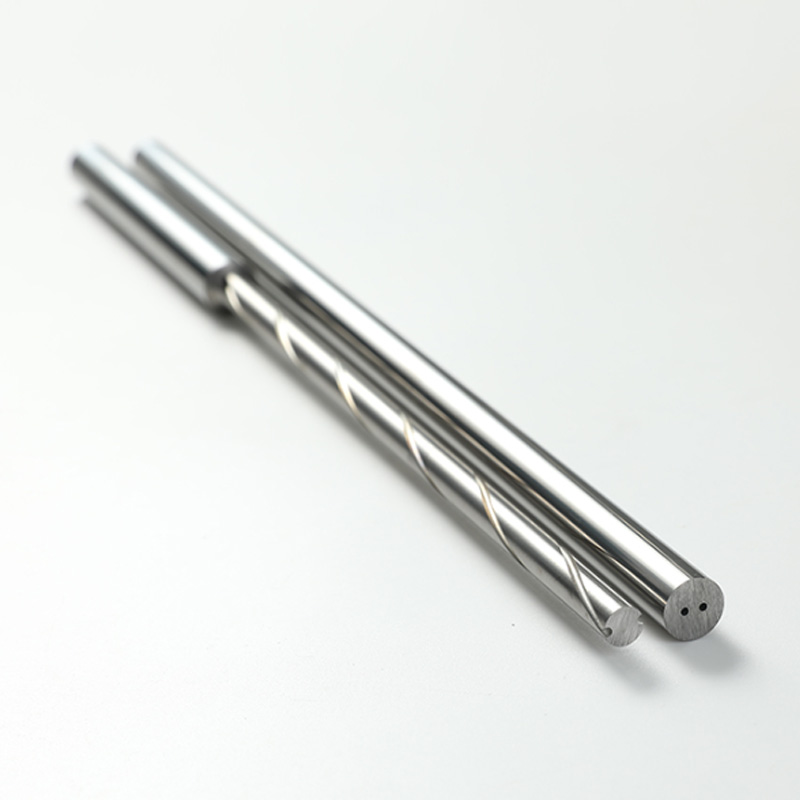

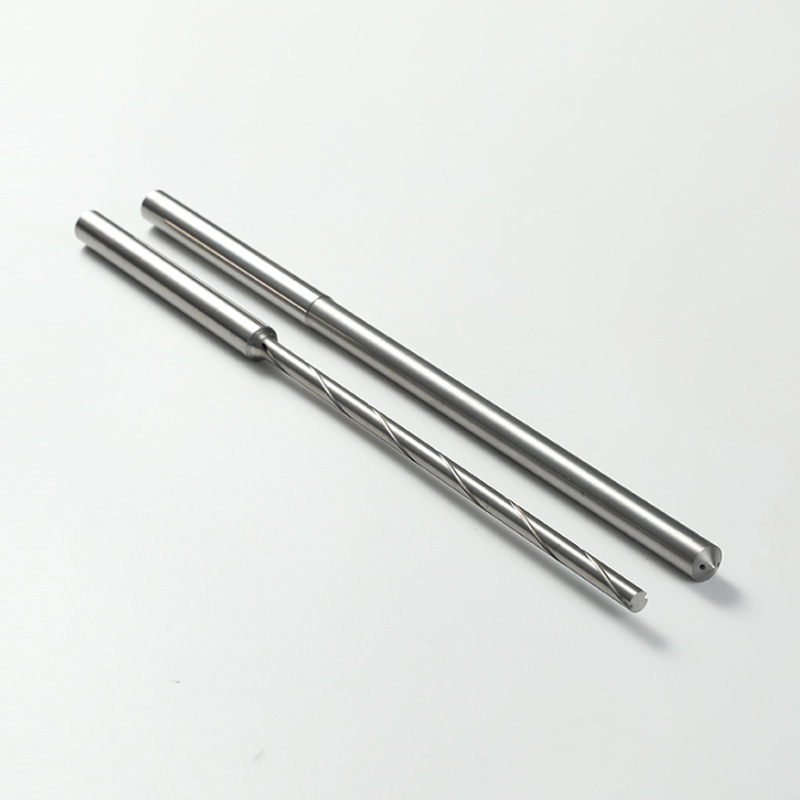

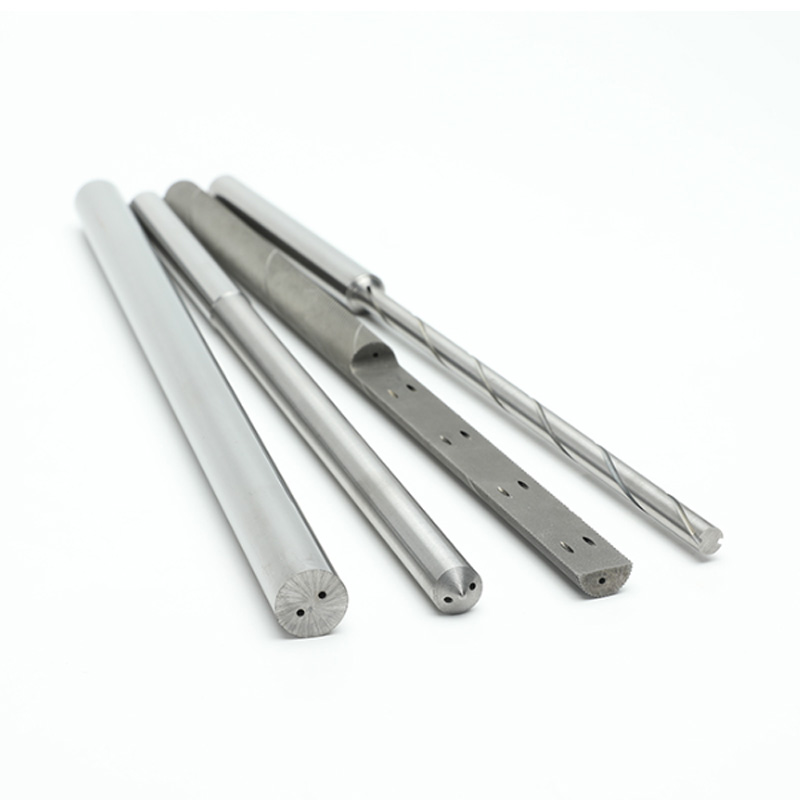

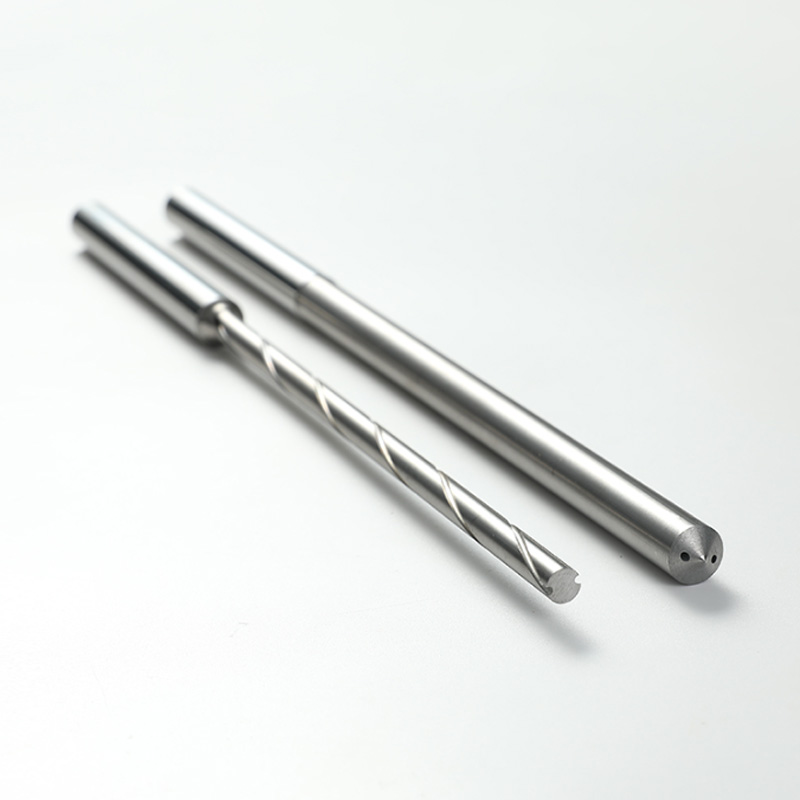

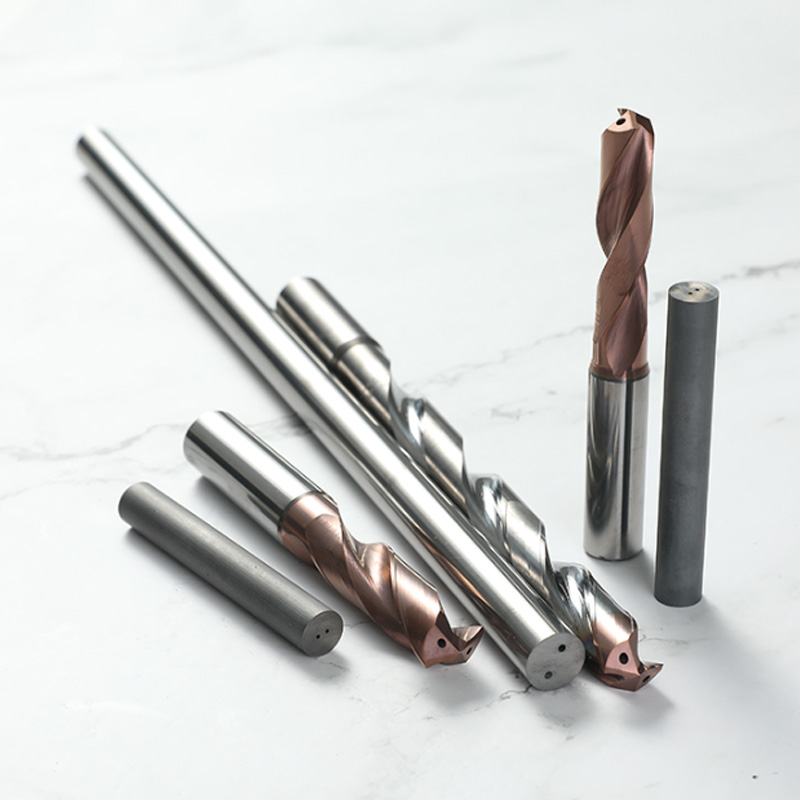

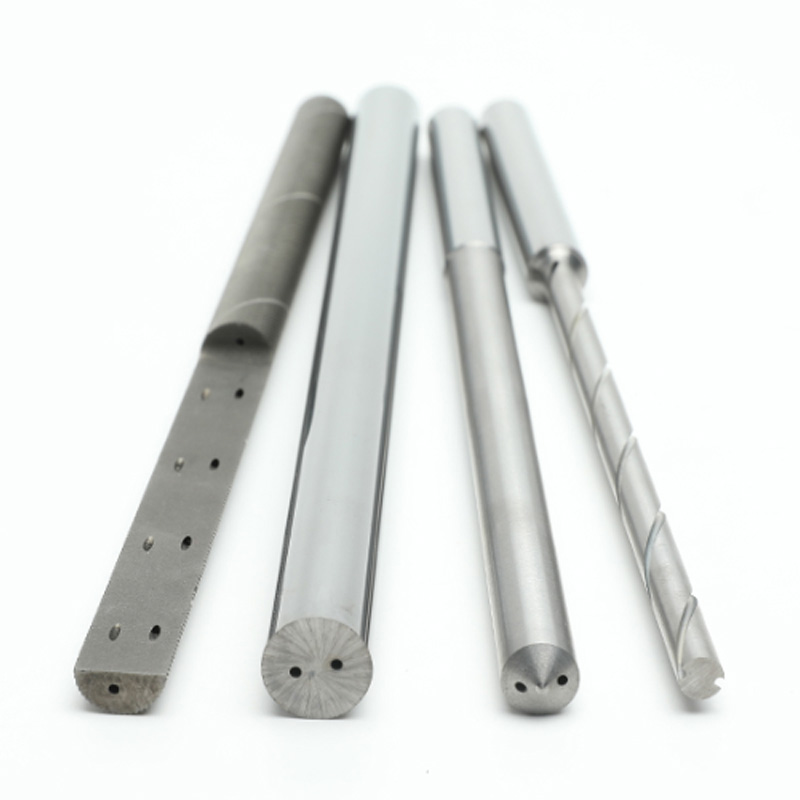

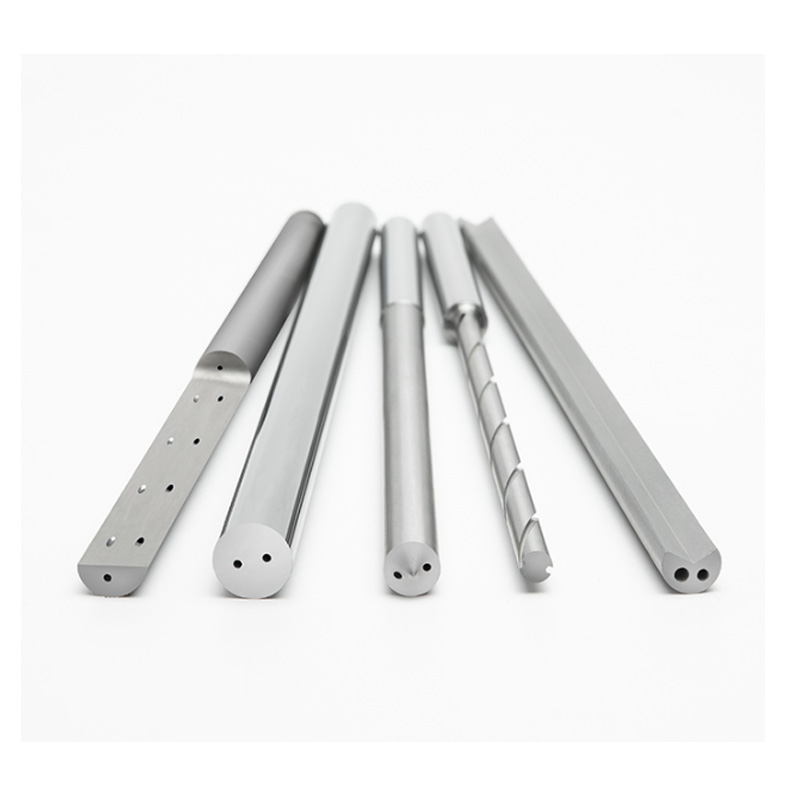

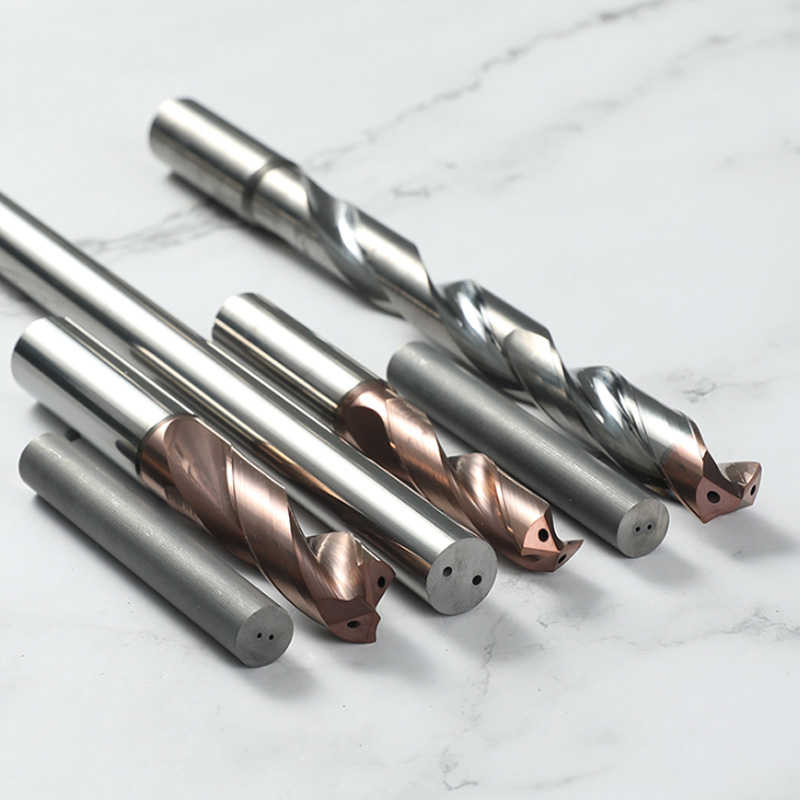

Carbide XXX gradu spiralis foramina virga cum altum duritiem, princeps viribus, altum gerunt resistentia et alia characteres, maxime per metallum pulveris iniectio CUMATIUM productio, potest ad a varietate terebras, summus celeritatem potest esse ad Tools.
Physica proprietatibus
| φd exteriores diameter | φe interiorem foraminis | D1 Bolt Circulo | Foramen Deviatio | Pice | Longitudo (0, V) | |||||
| Impudicus | To1. | Humus | Dia. | To1. | Spatio | TOL. | Pice | To1. | ||
| Inferius / superius | H6 / H5 | Inferius / superius | Inferius / superius | Inferius / superius | ||||||
| 6 | 0,7 / 1.1 | 6.0 | 0.70 | ± 0.10 | 2.60 | -0.4 / 0 | 0.15 | 32.65 | -0.65 / 0.67 | 330 |
| 8 | 0,8 / 1.2 | 8.0 | 1.00 | ± 0.15 | 4.00 | -0.4 / 0 | 0.15 | 43.53 | -0.86 / 0,89 | 330 |
| 10 | 0,8 / 1.2 | 10.0 | 1.40 | ± 0.15 | 4.80 | -0.6 / 0 | 0.20 | 54.41 | -1.08 / 1,11 | 330 |
| 12 | 0,9 / 1.3 | 12.0 | 1.40 | ± 0.15 | 6.25 | -0.8 / 0 | 0.30 | 65.30 | -1.30 / 1.34 | 330 |
| 14 | 0,9 / 1.3 | 14.0 | 1.75 | ± 0.20 | 7.10 | -0.8 / 0 | 0.40 | 76.18 | -1.51 / 1.56 | 330 |
| 15 | 0,9 / 1.3 | 15.0 | 1.75 | ± 0.20 | 7.70 | -0.8 / 0 | 0.40 | 81.62 | -1.62 / 1.67 | 330 |
| 16 | 1.0 / 1.4 | 16.0 | 1.75 | ± 0.20 | 8.30 | -0.8 / 0 | 0.40 | 87.06 | -1.73 / 1.78 | 330 |
| 18 | 1.0 / 1.4 | 18.0 | 2.00 | ± 0.25 | 9.55 | -0.8 / 0 | 0.50 | 97.95 | -1.94 / 2.00 | 330 |
| 20 | 1.0 / 1.4 | 20.0 | 2.00 | ± 0.25 | 10.40 | -1.0 / 0 | 0.50 | 108.83 | -2.16 / 2.23 | 330 |
| 22 | 1.0 / 1.5 | 22.0 | 2.00 | ± 0.25 | 11.60 | -1.0 / 0 | 0.50 | 119.71 | -2.38 / 2.45 | 330 |
| 25 | 1.1 / 1.6 | 25.0 | 2.00 | ± 0.25 | 13.30 | -1.0 / 0 | 0.50 | 136.03 | -2.70 / 2.78 | 330 |
Ingredient content
Productum parametri
| Pario | Gradus | June Price Sept. Price (KG / USD) | June Price Sept. Price (Pages / kg) | Frumea magnitudine (Um) | Cobalt contentus (CO%) | Durities (HRA) | Durities (HV30) | Densitas (G / cm 3 ) | Tr (N / mm 2 ) | Applicationem commendatae |
| Ultrafine | Hu12u | 362 | 49.29 | 0.4 | 6 | 93.8 | 1900 | 14.8 | 3900 | Applicata ad altus-duritia materiam dispensando inter PCB terebras, milling incidet, et grave. |
| Hu18u | 387 | 52.69 | 0.4 | 9 | 93 | 1850 | 14.5 | 3900 | Applicata ad dispensando duritiam et difficile-to- Machina materiae, immaculatam machining et micro drometem. | |
| Hu24u | 392 | 53.37 | 0.4 | 12 | 92.6 | 1760 | 14.12 | 4200 | Special Carbide materiale de summus celeritas milling applicantur ad Alloy ferro (Hrc50-60) et immaculatam ferro. Non-ferrea metallum. Titanium Alloy, High-temperatus Alloy, etc. | |
| Hu20x | 375 | 51.06 | 0.6 | 10 | 92.2 | 1730 | 14.43 | 3800 | Nam communem usum summus celeritas milling et EXERCITATIO, applicata Steel steel enim, immaculatam ferro, mittent ferrum, non-ferrea metallum, High-temperatus moxy etc. | |
| Submicron | Hu20 | 372 | 50.65 | 0.7 | 10 | 91.9 | 1600 | 14.45 | 3800 | Nam communem usum in milling et EXERCITATIO, applicatur ad Alloy ferro. Immaculatam ferro, non-ferrea metallum, summus temperatus Alloy, etc. |
| Hu20e | 362 | 49.29 | 0.7 | 10 | 91.8 | 1600 | 14.45 | 3700 | Generalis usum oeconomicae milling et EXERCITATIO, applicata Nam steel, immaculatam ferro, non-ferrea metallum, princeps Temperatus Alloy etc. | |
| Hu12 | 361 | 49.15 | 1 | 6 | 92.5 | 1740 | 14.85 | 3000 | Optimus materia ad Diamond Pectus coating, idoneam fibra Reinforced Material (Carbon Fiber et Vitrum fibra): Composita materia, summus Silicon Aluminium Alloy et Graphite products. | |
| Hf30f | 329 | 44.79 | 0.8 | 10 | 91.8 | 1600 | 14.3 | 3500 | Et oeconomica gradu ad milling, applicari ad sticum ferro, non-- ferrea metallum etc. |
